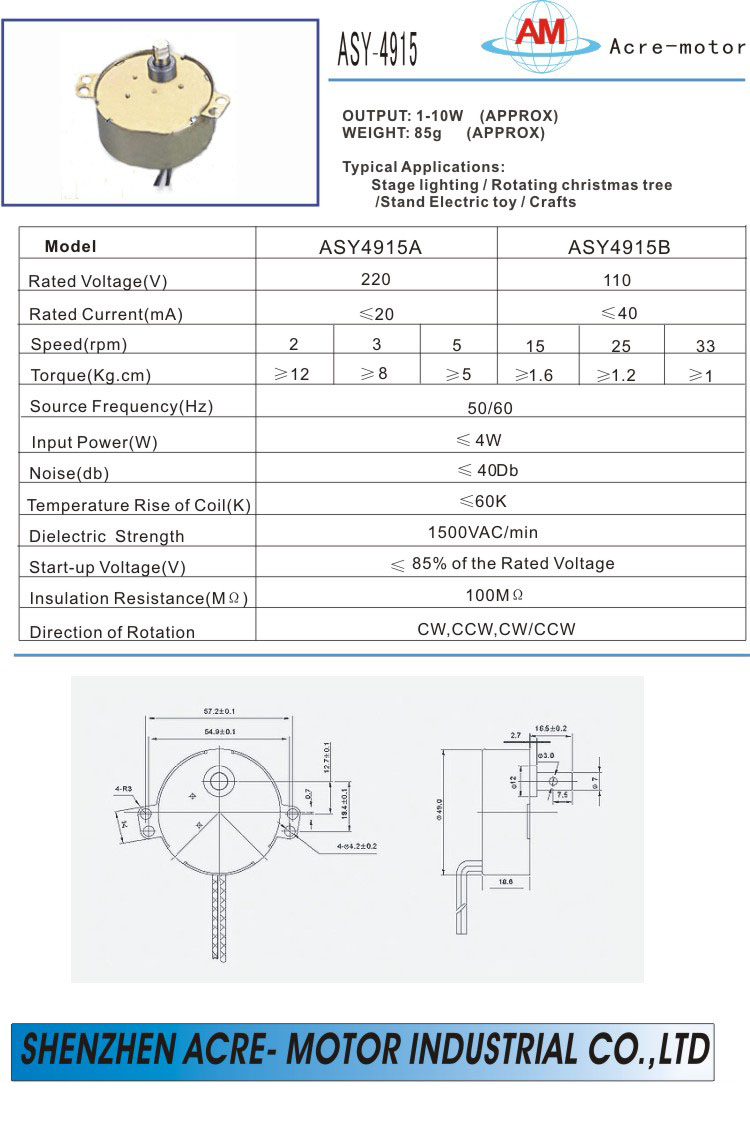

Synchronous motor Model : ASY-4915 Output :1-10W (Approx) Weight : 85g (Approx) Typical applications: Stage lighting Rotating christmas tree Stand electic toy Crafts
Rated voltage: 220V,120V Rated current : ≤20mA, ≤40mA Speed : 2rpm, 3rpm, 5rpm, 15rpm, 25rpm, 33rpm Torque : ≥12Kgcm, ≥8Kgcm, ≥5Kgcm, ≥1.6Kgcm, ≥1.2Kgcm, ≥1Kgcm Source frequency :50/60Hz Input power : ≤ 4W Noise : ≤ 40db Temperature rise of coil : ≤ 60K Dielectric of strength : 1500VAC/min Start-up voltage : ≤85% of the rated voltage Insulation of the resistance : 100MΩ
Direction of rotation : CW/CCW |
|
|
|
复制产品链接
长按图片保存/分享
Synchronous motor ASY-4915
