Spur gear motor
图文
详情

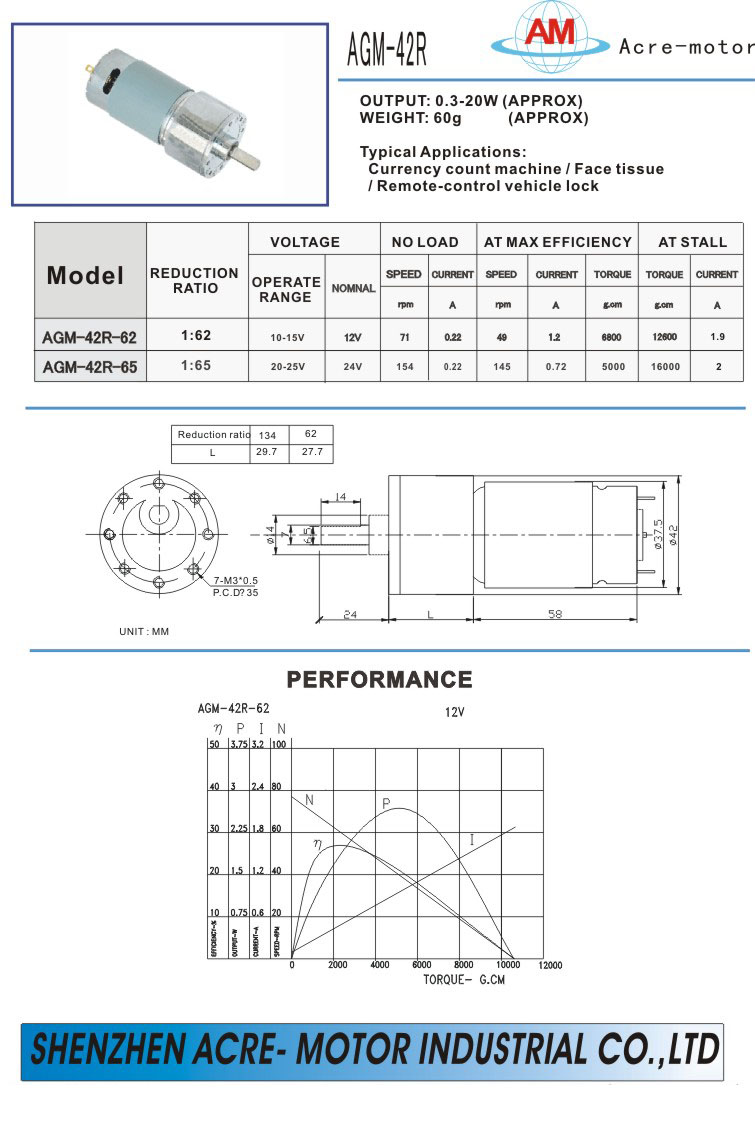

Spur gear motor AGM-42


  Performance:



  • Spur-gear motor

  • Model : AGM-42

  • Output : 0.3-20W(Approx)

  • Weight : 60g (Approx)

  • Typical applications:

    • Currency count machine

    • Remote-control vehicle lock

       Nominal  Voltage: 12VDC,24VDC

       Reduction ratio: 1:62, 1:65

  • No load:

    • Speed: 71rpm,154rpm

    • Current: 0.08A, 0.08A

  • At maximum efficiency:

    • Speed: 49rpm,145rpm

    • Current: 1.2A, 0.72A

    • Torque: 6800gcm/666.6mNm, 5000gcm/490mNm

  • At stall:

    • Torque: 12600gcm/1235mNm ,16000gcm/1568.6mNm

Current : 1.9A, 2A
