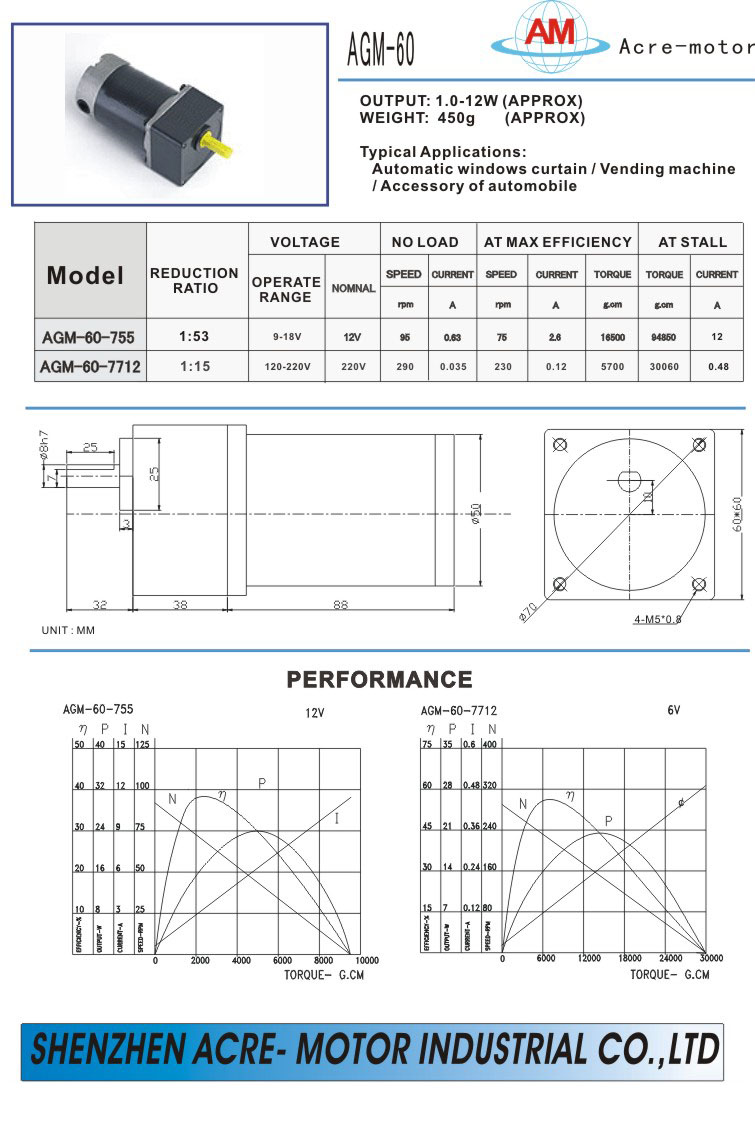

Spur gear motor AGM-60


 Performance:



  • Spur-gear motor

  • Model : AGM-60

  • Output : 1.0-12W(Approx)

  • Weight : 450g (Approx)

  • Typical applications:

    • Automatic windows curtain

    • Vending machine

    • Accesory of automobile

       Nominal  Voltage: 12VDC, 220VDC

       Reduction ratio: 1:53, 1:15

  • No load:

    • Speed: 95rpm,290rpm

    • Current: 0.63A, 0.035A

  • At maximum efficiency:

    • Speed: 75rpm,230rpm

    • Current: 2.6A, 0.12A

    • Torque: 16500gcm/1618mNm, 5700gcm/559mNm

  • At stall:

    • Torque: 94850gcm/9299mNm ,30060gcm/2947mNm

Current : 12A, 0.48A
